3-520406-2
Manufacturer:
TE Connectivity
Mfr.Part #:
3-520406-2
Datasheet:
Description:

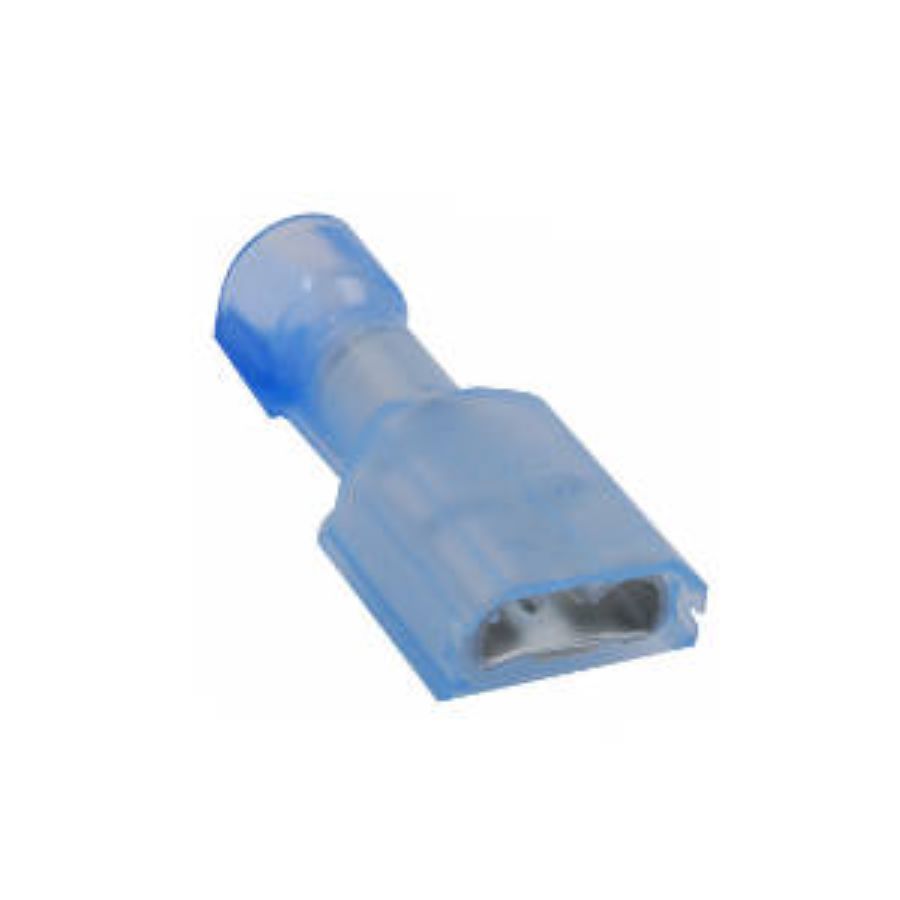

Terminals Free Hanging 14 AWG to 16 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.72 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 10.38 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Blue |
| Gender | Female |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 4.064 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 14 AWG to 16 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 16 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 4.064 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 4.75 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.81 mm |
Stock: 185
Distributors
pcbx
pcbxUnit Price$0.51670
Ext.Price$0.51670
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51670 | $0.51670 |
| 10 | $0.25835 | $2.58350 |
| 50 | $0.19873 | $9.93650 |
| 100 | $0.15287 | $15.28700 |
| 500 | $0.13890 | $69.45000 |
| 1000 | $0.12620 | $126.20000 |
| 3000 | $0.11859 | $355.77000 |
| 5000 | $0.11144 | $557.20000 |
| 10000 | $0.10472 | $1047.20000 |
| 30000 | $0.09841 | $2952.30000 |
| 50000 | $0.09247 | $4623.50000 |
